M111Kompressor

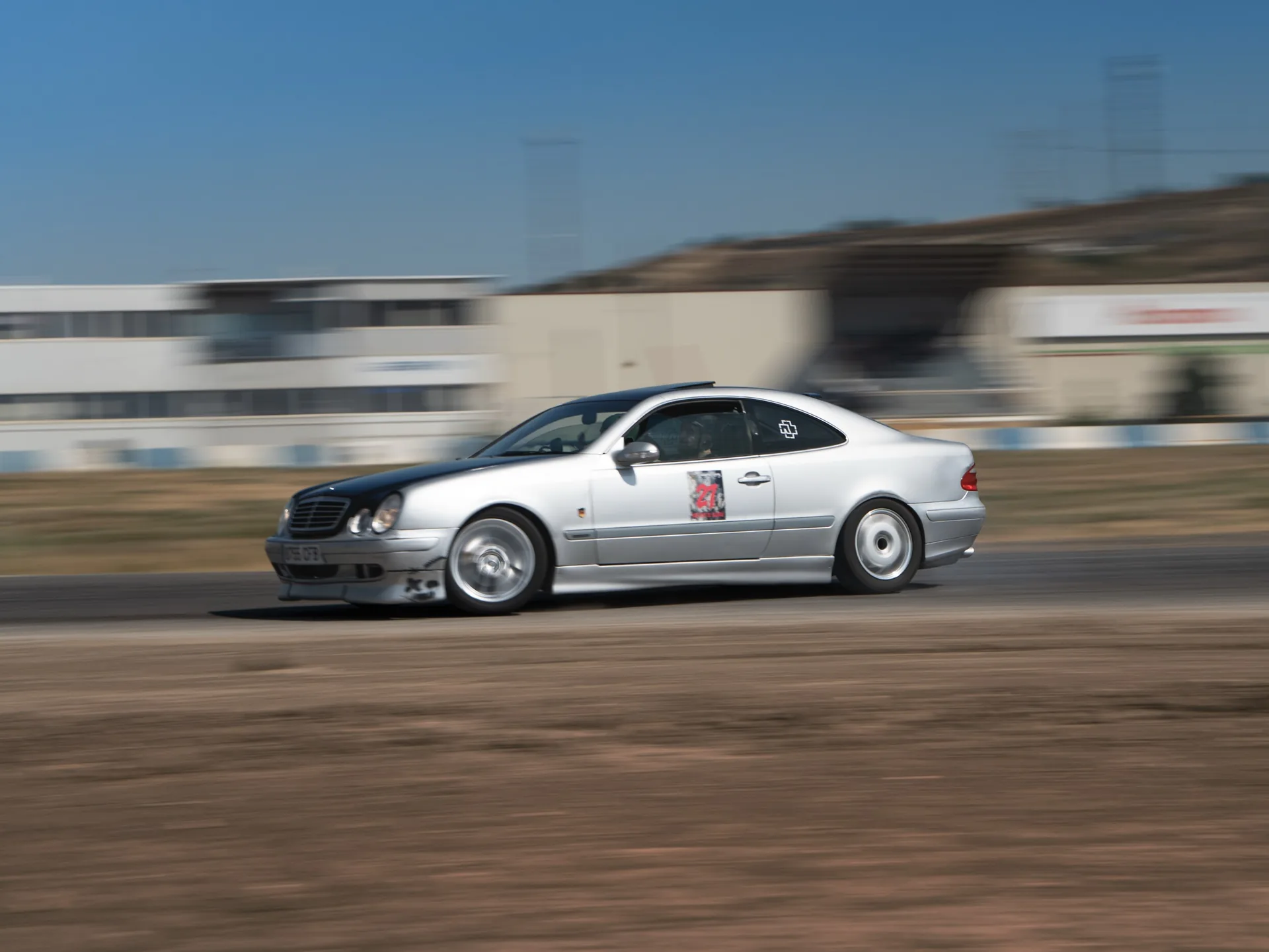

Mercedes CLK Kompressor on track

MERCEDES M111 / BOSCH ME2.1

M111 Kompressor
ECU tuning.

More response. More character.
A calibration made for your Kompressor.

Custom Bosch ME2.1 ECU remapping for Mercedes M111 200 and 230 Kompressor engines, matched to your hardware and fuel.

Explore your tune Get the free dashboards
200 / 230 KOMPRESSORCUSTOM ECU CALIBRATION

YOUR CAR. YOUR CALIBRATION.Let's talk M111.

Email Danieldaniel@drasite.comFollow on Instagram@dani_ruiz24
230 KOMPRESSOR220–250 estimated hp

Three stages of preparation.
One calibration for your configuration.

Compare the stages
ONE ENGINE FAMILY.
THREE MODERN CLASSICS.C-ClassW202CLKW208SLKR170

M111 Kompressor models with Bosch ME2.1.
Compatibility is confirmed against your ECU.

01 / MAKE IT YOURS

M111 tuning options.
Your kind of drive.

From sharper boost response to a distinctive overrun sound. Explore the possibilities for a calibration built around your car.

01

Power & response

The foundations of your tune.

  • Fuel injection tuningFuel delivery matched to your boost, injectors and hardware.
  • 98 RON ignition calibrationIgnition-retard settings tailored to 98 RON petrol.
  • Faster boost valve responseRevised bypass-valve control for a more immediate boost response.
  • Revised temperature strategyLess conservative temperature-based intervention, matched to your cooling setup.
02

Rev limits & sound

Give your setup its own character.

  • Custom rev limitA revised maximum engine speed for your configuration.
  • Stationary rev limitA separate RPM limit while the vehicle is stationary.
  • Hard-cut RPM limiterA sharper cut-off at your agreed rev limit.
  • Pops & bangs / burbleOverrun sound tailored to the character you want.
  • Remove 5700rpm limiter without ABS (for drift or swaps)Overrun sound tailored to the character you want.
03

Start-up & integration

The details of your installation.

  • Cold start offOptional deactivation of the cold-start strategy.
  • Immo offSoftware-based immobiliser deactivation. Currently experimental for 114.235404.04 (404).
BUILT TO YOUR SPEC

The combination is confirmed for your ECU software, hardware and intended use.

Discuss this setup

02 / 230 KOMPRESSOR PACKAGES

230 Kompressor.
Three tuning stages.

Choose the starting point for your project. Each stage brings together mechanical upgrades and a matching Bosch ME2.1 calibration.

Stage 1

THE FOUNDATION
≈220hp

ESTIMATED POWER / 230 KOMPRESSOR

More airflow. A new starting point.

  • 218 mm crankshaft pulley
  • Cold air intake
  • Exhaust
  • ECU remap
Ask about Stage 1

Stage 2

THE EVOLUTION
≈220–230hp

ESTIMATED POWER / 230 KOMPRESSOR

Airflow, cooling and fuel delivery.

  • Stage 1 base + ported supercharger
  • Intercooler and intake revisions
  • Bosch 320 cc injectors
  • Wideband sensor and FR6DC spark plugs
  • Calibration matched to the full setup
Ask about Stage 2

Stage 3

UP TO 250 HP
≈230–250hp

ESTIMATED POWER / 230 KOMPRESSOR

Take the complete package further.

  • Stage 2 preparation as a base
  • 84 mm supercharger pulley
  • Adjustable fuel pressure regulator
  • Fuel delivery and calibration adjustments
Ask about Stage 3

Project estimates for the 230 Kompressor with the hardware and calibration described. Results depend on fuel, installation and engine condition, and are confirmed by measurement.

200 Kompressor or a different setup? Your project and power estimate are assessed individually. Discuss your configuration ↗

PAID TUNING SERVICE / QUOTED ACCORDING TO YOUR SETUP AND SCOPE

03 / INSIDE THE CALIBRATION

Bosch ME2.1 tuning.
Hardware and software.

Injection, ignition timing and supercharger control work together. From the ECU on the bench to the maps in WinOLS, understanding your software is where the calibration begins.

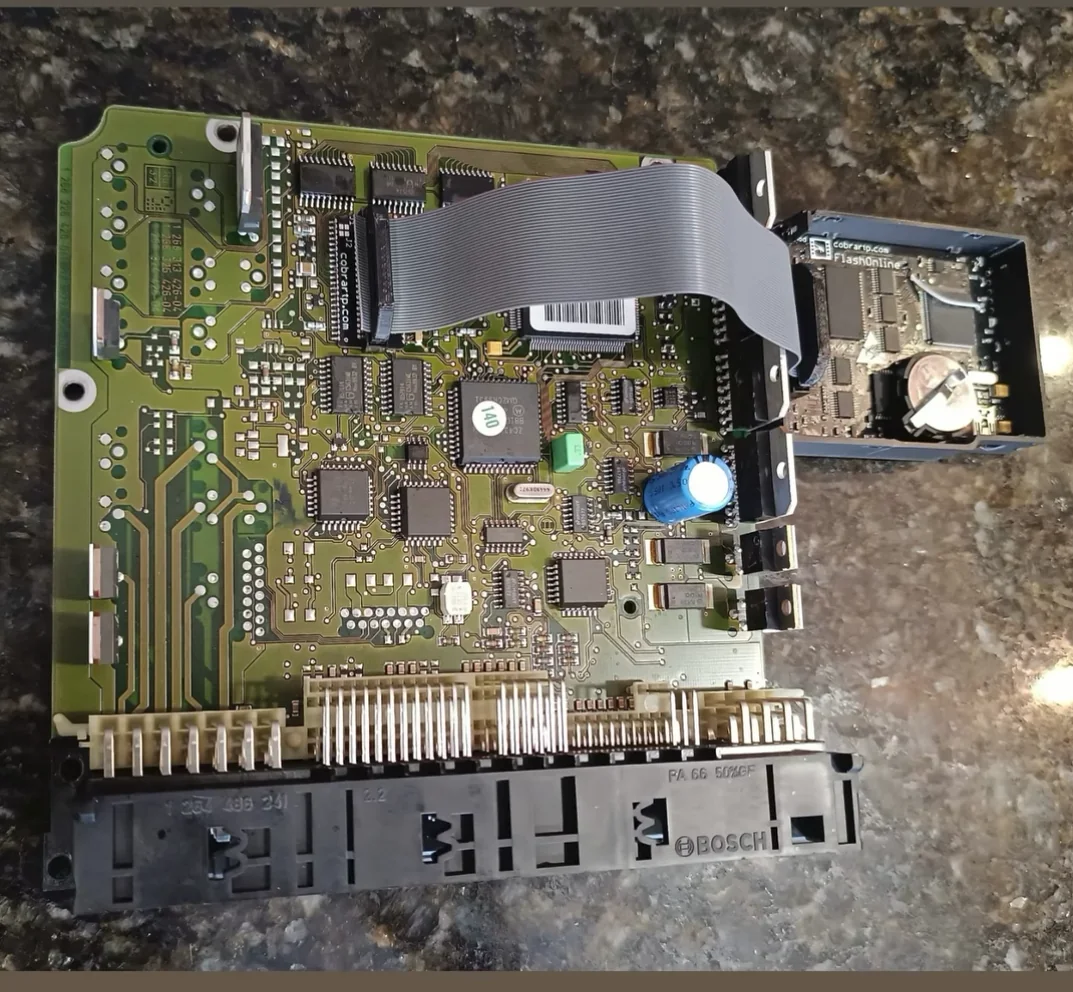

THE HARDWAREBOSCH ME2.1
Where it starts.The actual project ECU on the bench.

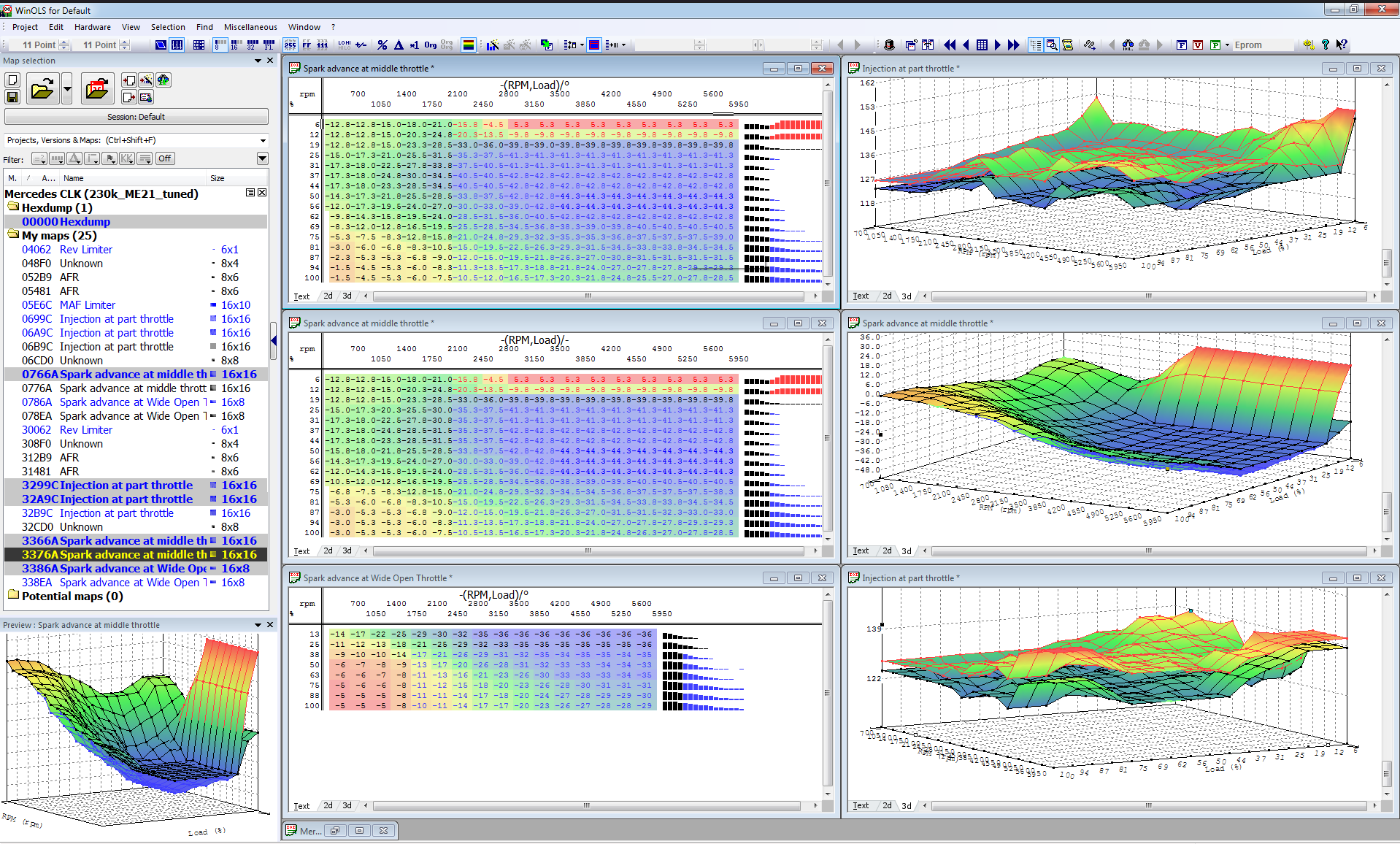

THE CALIBRATIONWINOLS
Where the details come together.Fuel and ignition maps from the actual project.
01 / INJECTION
Fuel and engine load
02 / IGNITION
Timing and corrections
03 / SUPERCHARGER
Bypass-valve control

04 / MERCEDESOBD · FREE SOFTWARE

Free Mercedes OBD
dashboards.

Two platforms. The same insight into your M111.
ECU-specific readings beyond standard OBD. Free, with or without a remap.

MercedesOBD for PC

A complete view for logging, comparing and understanding your engine data from a computer.

Download for Windows

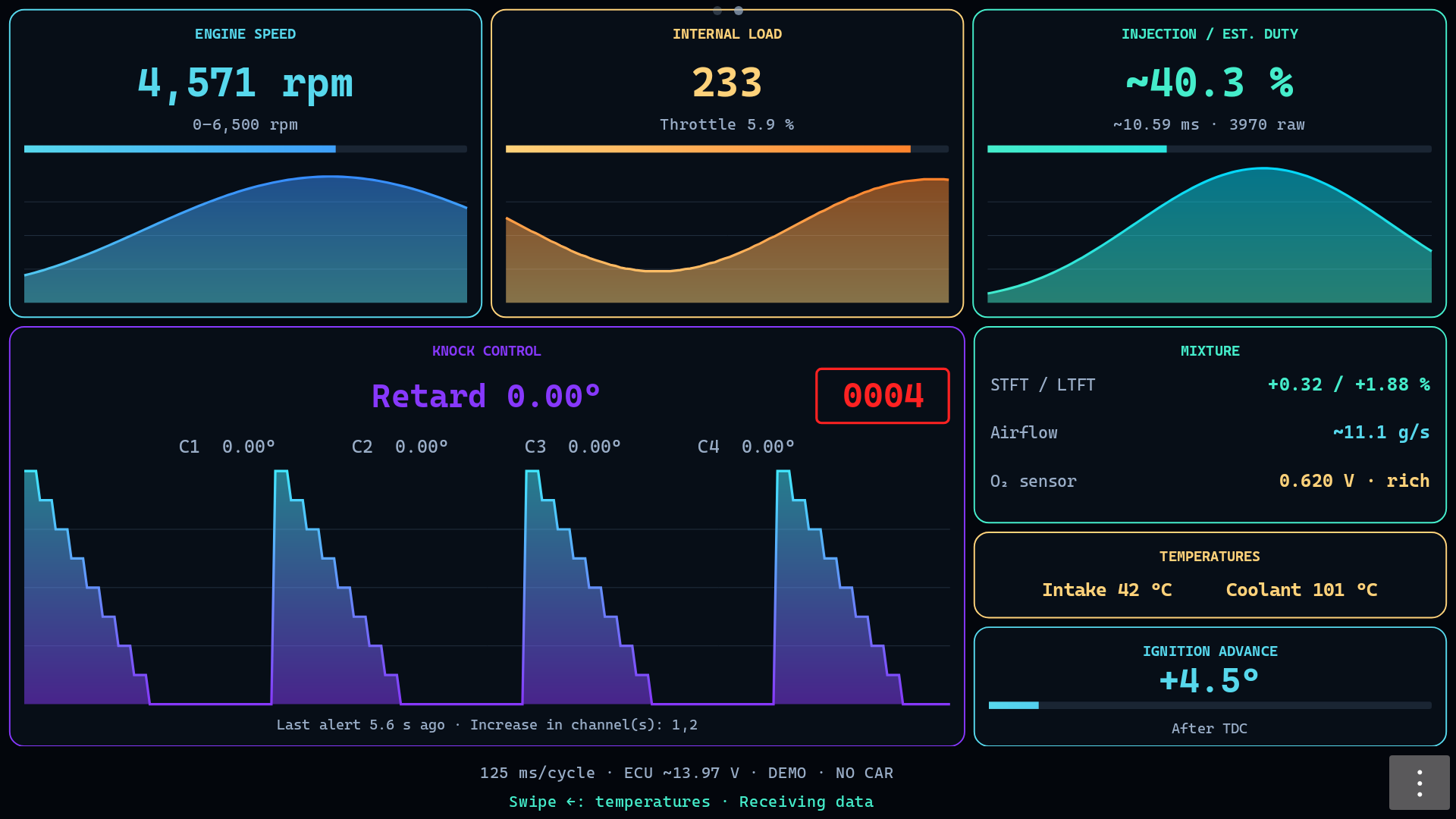

MercedesOBD for Android

Your engine data on your phone, with built-in log management for exporting and sharing.

Download free APK

Go deeper than
a generic OBD reader.

Extra capabilities developed from
Mercedes-specific diagnostic communication.

01

Per-cylinder ignition retard

Read corrections for all four cylinders and monitor observed increases.

C1 / C2 / C3 / C4
02

Internal ECU load

See the load value used by the ECU's maps, across its full internal scale.

0 — 255 RAW
03

Injection time & duty

Track estimated injection duration and injector duty, with history graphs.

ms / %
04

Learned fuel corrections

Read low/high LTFT and learned additive correction in a dedicated menu.

05

Logs ready for analysis

CSV logs for MegaLogViewer and correction snapshots in JSONL. Android adds export and ZIP sharing.

CSV / JSONL / ZIP
06

Engine fault diagnostics

Read and clear engine fault codes. Clearing requires confirmation and a stopped engine.

READ / CLEAR
≈400ms

per cycle in the tested setup.
Speed depends on the adapter and connection.

Compatible ELM327 Bluetooth adapters.
Tested: OBDLink, Veepeak and Renolink.

EN / ES

Automatic device-language selection.
Demo mode works without a car.

The counter tracks observed increases in ignition correction, not confirmed knock events. Injection duration and duty are estimates. Some ELM327 clones do not support the required commands.

05 / FROM YOUR SETUP TO YOUR TUNE

First, understand.
Then, calibrate.

A direct conversation about your car, followed by a proposal based on its actual configuration.

01 / YOUR CAR

Tell me what you run.

Model, engine, fuel and modifications. Include the ECU or software reference if you know it.

02 / REVIEW

Establish the starting point.

The original readout and available logs help assess compatibility, engine condition and your objectives.

03 / YOUR PROPOSAL

Define the calibration.

We agree the scope, options and price. The tune is planned around the full setup you have built.

A project that shares what it learns.

Map definitions, tools and documentation are available to the community.

Explore the GitHub project

BEFORE WE START

M111 tuning
FAQs.

Will this work with my Mercedes?

The project focuses on Mercedes M111 200 and 230 Kompressor engines with Bosch ME2.1: C200/C230 Kompressor (W202), CLK200/CLK230 Kompressor (W208) and SLK200/SLK230 Kompressor (R170). The ECU version determines compatibility. Send your ECU or software reference so we can confirm compatibility.

How much does a remap cost?

Quotes depend on the software version, modifications, selected options and scope of work. Tell me about your setup for a tailored proposal.

How much power can I expect?

Project estimates for the 230 Kompressor are approximately 220 hp for Stage 1, 220–230 hp for Stage 2 and 230–250 hp for Stage 3. These figures cover the described hardware and calibration together. Results depend on fuel, installation and engine condition. The 200 Kompressor is assessed individually.

Can I choose individual tuning options?

Yes. Contact Daniel directly to discuss the features that interest you. The final combination is agreed after reviewing your ECU software and setup. Immo off is currently experimental for 114.235404.04 (404) software.

Are the dashboards free without a remap?

Yes. The PC and Android versions are free and independent of the paid tuning service. Both include a demo mode to explore the interface without connecting a vehicle.

What do I need to connect the dashboard?

A compatible ECU, an ELM327 adapter that supports the required commands, and the appropriate vehicle connection. OBDLink, Veepeak and Renolink have been tested. Some inexpensive clones are incompatible. The repository includes connection instructions.

Your next step
starts here.

I'm Daniel. Tell me what you drive,
what you have changed and what you want next.

Email Danieldaniel@drasite.comFollow on Instagram@dani_ruiz24

Build your enquiry

NO OBLIGATION

Your enquiry is emailed to Daniel. Your name and email are used to reply to your request.
